The Series 1000 switching modules are specifically designed for home audio and car audio signal switching applications. These switching modules use hermetically sealed gold-cap silver palladium relay contacts for optimum signal integrity and each switching module is capable of handling 2-channel bi-directional signal flow operation.
Series 1000 switching modules are designed to support 4 component positions and are expandable for multi-channel product support. Custom Audio Interactive’s proprietary communication architecture provides reliable “lock-up” free performance and functions on all three merchandising platforms (button-by-product, centralized control panel or our interactive touch screen option). |
|
|
|
|
|
1040E Expansion Module |
The 1040E expansion module is a Low level (preamp) or composite video-switching module designed to be used in conjunction with a Main Module. The 1040E is equipped with left and right RCA type connectors for quick installation and supports 4 product positions. |
 |
|
|
|
|
 |
|
HTR 8.1 Digital Audio Receiver Module |
The all-inclusive HTR 8.1 Digital Audio Receiver Module supports Left & Right analog audio, Digital PCM & Toslink audio, Composite Video In/Out, Sub Speaker Output, Front Speaker Outputs, Rear Speaker Outputs, Effect Speaker Outputs and Center (Front & Rear) Speaker Outputs for versatility not seen on any other switching module. |
 |
|
|
|
|
 |
|

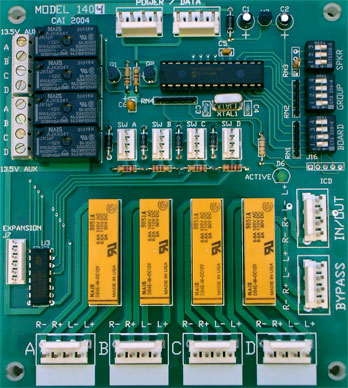

1404M Main Module |
The robust 1404M/1400M main switching modules are designed for home audio and car audio signal switching applications. The 1404M/1400M main switching modules are designed to support 4 component positions and are expandable for multi-channel product support. |
 |
|
|
|
 |
|
1404HC/1400HC main switching modules |
The bulletproof 1404HC/1400HC main switching modules are designed specifically for car audio signal switching applications where large current producing amplifiers are used. Every 1404HC/1400HC switching module can handle an industry leading 2600 watts of continuous RMS power @ 4 ohms and will accept 10 gauge speaker wire. The 1404HC/1400HC main switching modules are designed to support 4 component positions and are expandable for multi-channel product support. |
 |
|
|
|
 |
|

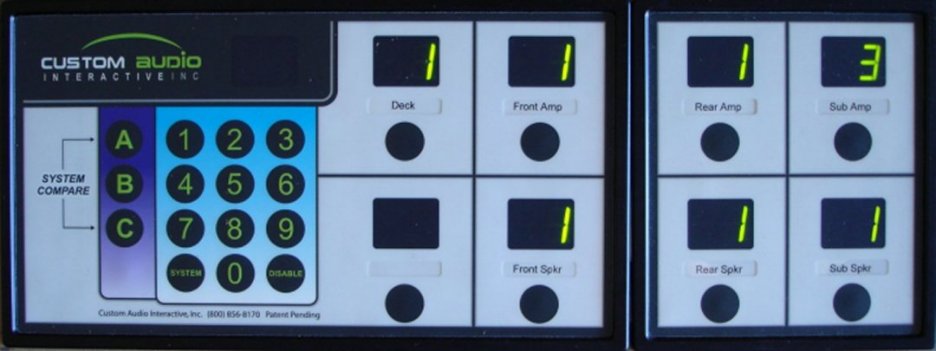

CPM-4 Control Panel |
CPM-4 Control Panel with a CPE-4 Expansion Panel
- Fully Programmable user Interface Control Panel
- Store up to 99 Unique Systems
- Security Disable Feature
- A B C System Compare
- Billet Aluminum Construction
- ONLY 1" DEEP |
 |
|
|
|
 |
|
1074 Source Module |
The 1074 is an all-inclusive Source Module that supports Left & Right analog audio, PCM & Toslink audio, Composite & Component (RGB) Video for HDTV sources |
 |
|
|
|
|
|
|
|
|
|
|
